Atomizer
Sprayer model Nebbia plus
The sprayer mod. NEBBIA plus is a large air volume “turbo sprayer” for crops that need a significant boost of air, such as tall trees (chestnut, poplar, walnut groves,
etc…). The special-design tank, which is small enough to be used in low-rise crops, is made of eco-friendly and fixable polyethylene and features a circuit-washing tank with a capacity equal to 10% that of the main tank. The hand-washing unit is built in the main tank, has an external suction filter with anti-emptying valve and double nozzles with brass drop-stop. The fan kit used in all the versions of the NEBBIA sprayer has a diameter of 720 mm; upon request the diameter can be increased to 820 or 920 mm. The variable-volume nylon fan, the 1-speed gearbox + neutral on the fan with a
diameter of 620/720 mm , on the variable volume nylon fan with 2-speed + neutral gearbox, and on the fan with a diameter of 820/920 mm allow obtaining a homogeneous air flow over the fan diameter ensuring even processing. The frame is made of hot galvanized bent sheet metal which ensures a long life.

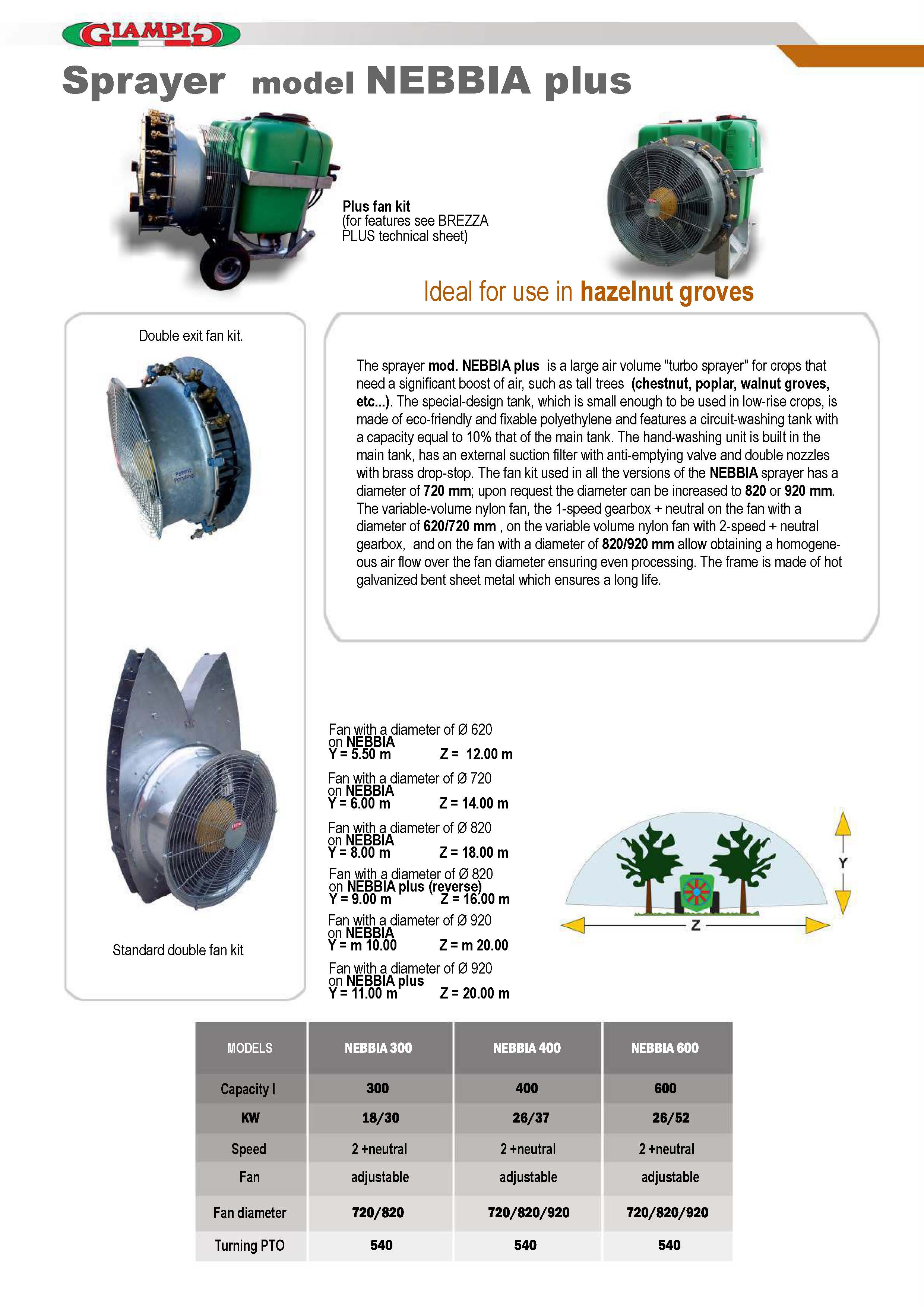

product details
Click below to enlarge
find out how it works
Click below to watch the video
